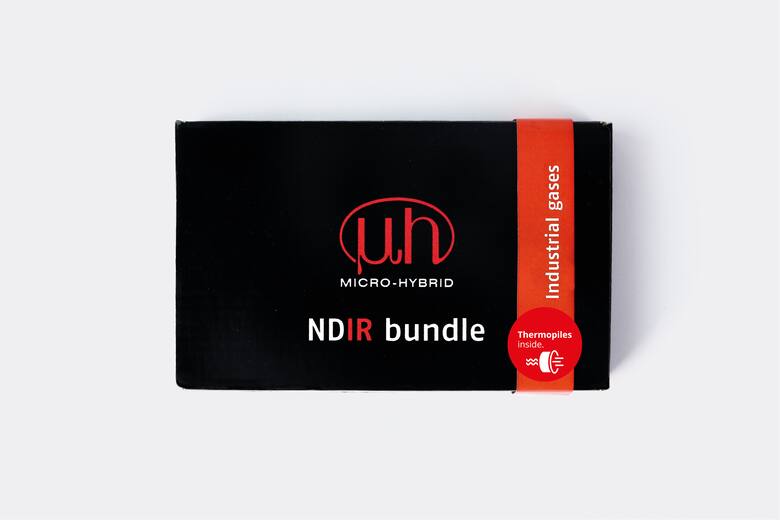

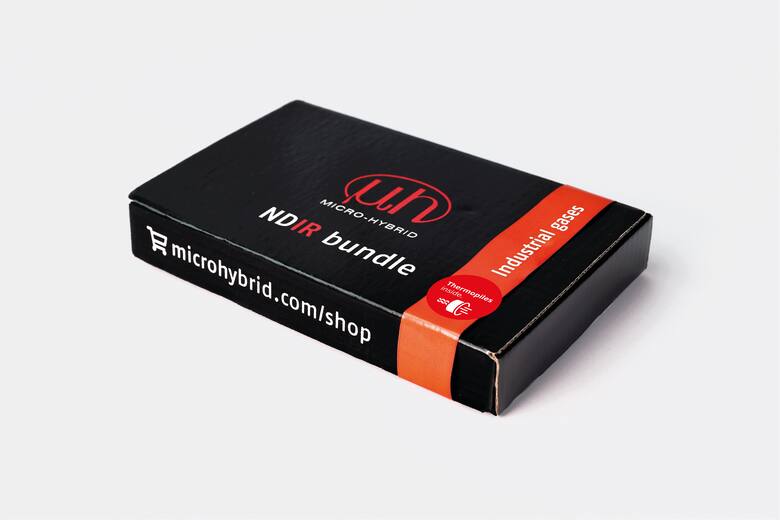

NDIR bundle industrial gases

The NDIR bundle industrial gases consists of optimally matched thin-film infrared emitters and various IR thermopile detectors for gas analysis in industrial applications. The set includes ten components for commonly measured gases such as CO₂, CO, hydrocarbons, nitrogen compounds and alcohols: four JSIR 350 series IR emitters in various TO packages and six matched thermopile IR detectors with two or four channels of the MTS 200 series.

In the development project, the NDIR bundle supports several goals: short-term delivery of IR components without minimum order, evaluation of components or testing of different components in the measurement system. Fast test results in development help to gain a decisive advantage on the way to market maturity of the series product. Micro-Hybrid is the only supplier worldwide to produce both IR components for gas analysis - practically and quickly available in one box.

The NDIR bundle industrial gases consists of:

1. TS4x200B-A-S1.5-1-Kr-D2/E1/F1/G2 - Detector 3C low CO₂
2. TS4x200B-A-S1.5-1-Kr-D2/E2/F1/G2 - detector 3C high CO₂
3. TS4x200B-A-S1.5-1-Kr-I1/L1/H1/D5 - Detector NOX
4. TS2x200B-A-S1.5-1-Kr-L1/D2 - detector N₂O
5. TS2x200B-A-S1.5-1-Kr-M1/D5 - detector -OH
6. TS2x200B-A-S1.5-1-Kr-J1/D5 - detector SF₆
7. JSIR350-4-AL-R-D6.0-0-0 - IR source TO39 with reflector, open
8. JSIR350-4-AL-R-D6.0-N2-A4 - IR source TO39 with reflector and filter BaF₂
9. JSIR350-4-AL-C-D5.8-0-0 - IR source TO39 with cap, open
10. JSIR350-5-BL-R-D3.6-0-0 - IR source TO46 with reflector, open
