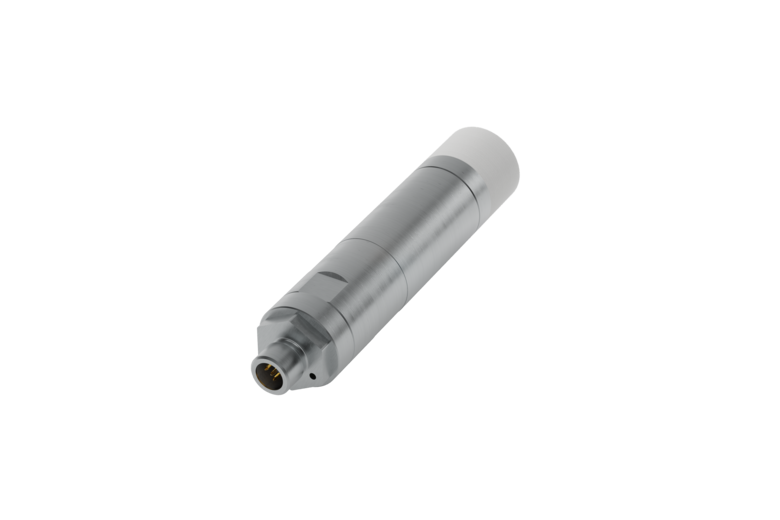

MicroSENS 100-VS
NDIR Gas sensor for CO2 measurement in incubators, vapour sterilizable at 100 °C
- Product type: NDIR gas sensor for CO₂ measurement in incubators, vapour sterilizable at 100 °C (sensor head)
- Target application: Direct installation inside the incubation chamber to measure the actual atmosphere experienced by the cells
- Measuring range: 0 … 20 Vol.-% CO₂ (optimized for accurate monitoring up to 5 Vol.-%)
- Measurement principle: IR dual-beam technology
- Compensation: Temperature + pressure compensated and humidity compensation
- Performance: Accuracy ± (2% of reading + 0.2 Vol.-%), repeatability < 0.11% FS, response time t90 < 25 s (with filter), digital resolution 0.001 Vol.-%
- Long-term stability: ≤ ± 0.2 Vol.-% at 5 Vol.-% / year
Bulk prices
| starting from 1 | 976,01 € |
| starting from 10 | 846,32 € |
| starting from 25 | 749,36 € |
| starting from 50 | 638,16 € |
Delivery of this product is subject to an extended deadline. Further informations ans help with procurement via our Micro Hybrid Sales Team.
You are currently ordering as a guest. To enjoy all the benefits of our Plattform such as higher quantities, customized prices, inventory, tracking (order status), order overview or change of repository etc. please log in to My Micro Hybrid
Description
CO₂ incubators must ensure stable, reproducible growth conditions for cell cultures-while keeping the risk of contamination as low as possible. This is exactly what this CO₂ sensor with infrared technology (NDIR) is designed for: it measures reliably under real atmospheric conditions inside the incubator and supports fast, precise CO₂ and temperature control for stable process management.
.
For everyday lab use, the sensor is designed for easy cleaning and reliable contamination protection. Application-specific core components and electronic modules are manufactured in-house and subjected to strict quality controls-for maximum service life and high delivery reliability.
.
The sensor integrates seamlessly into modern hygiene concepts for incubators: for optimal hygiene, the interior of INmplus and IFmplus incubators-including all installed components and all sensors-can be sterilized in a 4-hour program at +160 °C; in addition, full steam sterilization of the entire interior is possible.
The result: fast-responding NDIR CO₂ measurement for reliable atmosphere control-even in systems with advanced control concepts, e.g. O₂ control ranges from 1 to 21% (hypoxic) and 5 to 90% (hyperoxic).
Technical Data
| Maximum measuring range | 20 Vol.-% |
| Gas supply | Diffusion |
| Warm-up time at startup | < 15 s |
| Heating time for full specifications | < 5 min |
| IP protection class (default value) |
Sensor head IP54, area near connector plug IP30
|
| Repeatability | < 0,11 % FS |
| Accuracy | ± (2 % of reading + 0.2 Vol.-%) |
| Response time with filter | < 25 s |
| Digital resolution | 0.001 Vol.-% |
| Temperature influence | 0,125 % FS / 10 K |
| Pressure influence | 0,004 % FS / 10hPa |
| Long-term stability | ≤ ± 0.2 Vol.-% at 5 Vol.-% / year |
| Operating voltage (analog connection) | 15 - 24 V DC |
| Operating voltage (digital connection) | 12 - 24 V DC |
| Nominal power consumption | < 2 W |
| Digital output signal | RS485 |
| Analogue output signal | Current 4 - 20 mA |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 60 °C |
| Minimum storage temperature | -20 °C |
| Maximum storage temperature | 85 °C |
| Maximum sterilization temperature | 100 °C |
| Environmental humidity |
0 ... 95 % relative humidity (non condensing)
|
| Minimum air pressure | 500 hPa |
| Maximum air pressure | 1,200 hPa |
| Measuring gas | carbon dioxide |
