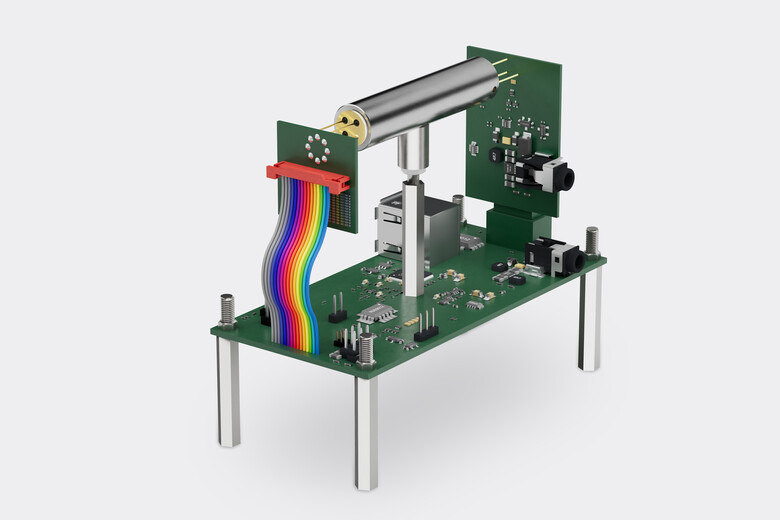

NDIR evaluation kit
Test module for the evaluation of IR emitters and detectors
PLEASE NOTE: Kit does not include IR components. We suggest ordering our NDIR bundles simultaneously.
- Evaluation of emitters and detectors without development of electrical circuit or software
- Easy setup of IR components and measurement of their output data, readout option for 1 / 2 channel pyro or thermopile detectors
- Allows optimization of the operating parameters for the specific application
- Visualization, processing and data storage of the signals possible
- Applications: prototypes for gas analysis for IR components evaluation, concept studies or use in education
Bulk prices
| starting from 1 | 850,00 € |
You are currently ordering as a guest. To enjoy all the benefits of our Plattform such as higher quantities, customized prices, inventory, tracking (order status), order overview or change of repository etc. please log in to My Micro Hybrid
Description
PLEASE NOTE: Kit does not include IR components. We suggest ordering our NDIR bundles simultaneously.
The evaluation kit enables a quick access to NDIR gas analysis. It can be used to test and evaluate thermopile or pyroelectric detectors together with Micro-Hybrid's IR emitters without having to develop an electrical circuit and software. The selection of the optimal IR components for the gas measurement system is accelerated. Operating parameters can be optimized for the specific application. The IR emitter can be easily controlled and the output data of the detectors can be monitored for flexibility in testing and optimizing your gas measurement system. The included measuring cuvette allows for quick measurements, shortening the development process.
Product highlights
- Measurement of two channels at the same time
- Integrated power supply for emitters and pyro detectors
- In addition, the frequency and duty cycle of the emitter can be adjusted
- Integrated amplifier circuit of the output signal, adjustable in two stages via software
- Signal conditioning can be activated via software (low-pass/high-pass filter)
- By software selectable signal evaluation (RMS / peak to peak / amplitude) including export function
- USB interface for communication with the attached PC software (visualization, processing and data storage of the signals)
Our NDIR evaluation kit can be used in many areas of infrared measurement
- Gas analysis for industrial component evaluation,
- Non-contact temperature measurement,
- Flame detection,
- Laboratory and experimental setups,
- Training and education
The system for testing our emitters and IR detectors is optimized for the products from the series:
- TO39 NAC emitter / JSIR 350-4
- TO46 NAC emitter / JSIR 350-5
- 2-channel TO39 thermopile detector / MTS2SENS
- 2-channel TO39 pyroelectric detector / MPS2SENS
Together with the NDIR bundles, our evaluation kit represents the perfect combination for easy evaluation of IR measurement systems. Both products are available from stock. All technical information and setup instructions can be found in the manual.
