JSIR 350-4 emitter, TO39 with cap, open
Premium IR-emitter with high modulation frequency for NDIR gas analysis
- Time constant of 12.5 ms,
- High radiation power with long-term stability,
- Long service life
Bulk prices
| starting from 10 | 89,99 € |
| starting from 25 | 52,03 € |
| starting from 50 | 39,38 € |
You are currently ordering as a guest. To enjoy all the benefits of our Plattform such as higher quantities, customized prices, inventory, tracking (order status), order overview or change of repository etc. please log in to My Micro Hybrid
Description
JSIR - Premium infrared emitter with cap
This version of the IR emitter has a powerful, virtually fail-safe membrane made of nanoamorphous carbon. This achieves membrane temperatures of up to 850 °C for high and stable radiation power offering long-term stability. The JSIR 350 IR emitter is ideal for various gas analysis applications in medicine, industry, and other demanding fields of application.

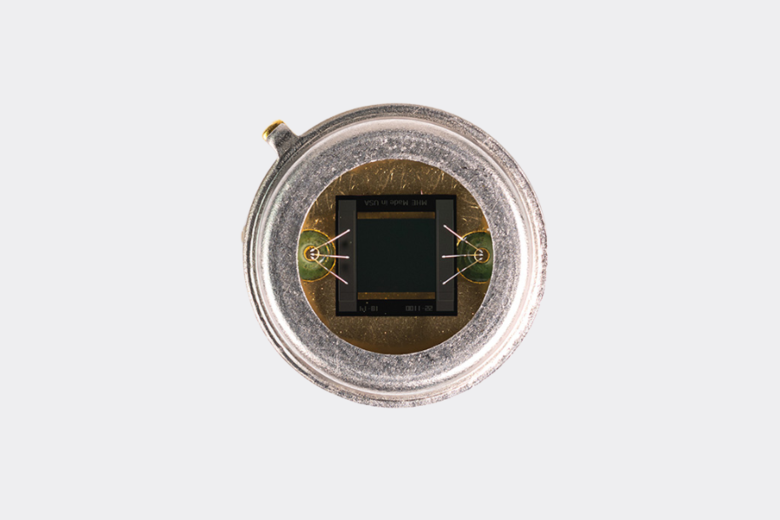

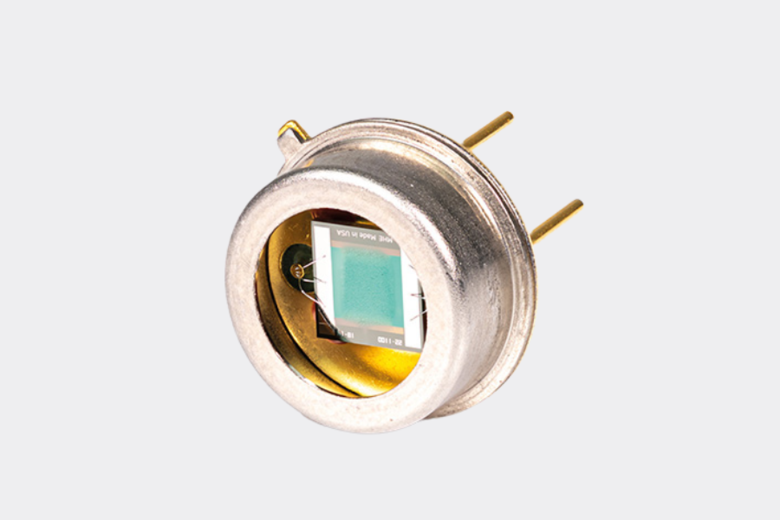

The packaging variant is in a standard TO39 housing with cap without window. The emitter can be used in combination with MTS thermopile detectors or with MPS pyro detectors. In combination with Micro-Hybrid's IR detectors, optimal system performance is achieved, enabling precise measurement results in the analysis of gas concentrations.
Our sales team will be happy to advise you on the selection of the appropriate emitter and detector, as well as on customer-specific adaptations and offers for large quantities. Technical information can be found in the data sheet.
Technical Data
| Emission range min | 2 µm |
| Emission range max | 15 µm |
| Active area | 2,2 x 2,2 mm² |
| Hot resistance | 40 ± 20 Ω |
| Temperature coefficient | 500 ppm/K |
| Time constant | 12.5 ms |
| Nominal power consumption | 650 mW |
| Operating voltage | 4.9 V |
| Operating current | 132 mA |
| Recommended operating mode |
Constant power mode
|
| Estimated operating life |
> 5000 h at 740 °C; > 100000 h at 610 °C
|
| Temperature of active area | 610 °C |
| Maximum power consumption | 1,200 mW |
| Maximum enclosure temperature | 185 °C |
| Maximum temperature of active area | 850 °C |
| Socket | TO39 |
